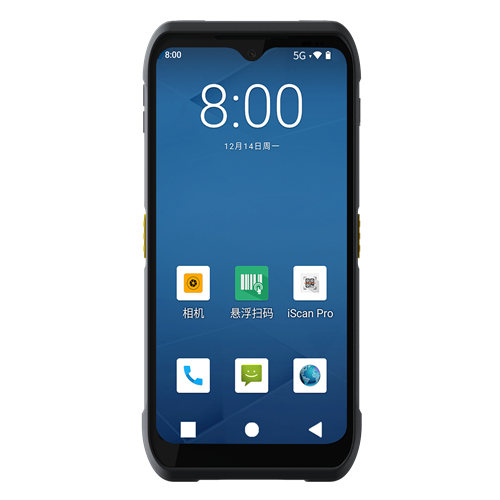

T2X (RFID)

• OS: Android 12

• CPU: Octa-core 2.0GHz high-performance processor

• Memory: 64GB + 4GB (standard)

• Micro SD card (up to 256 GB)
Select two out of three available SIM card slots, support dual SIM and dual standby

• Display : 6,21-inch, resolution: 1520*720 pixels

• Communication Transmission: WWAN(2G;3G;4G),(Wi-Fi 802.11a/b/g/n/ac/d/e/h/i/j/k/r/v/w (2.4G + 5G dual-band Wi-Fi), support fast roaming) , Bluetooth v5.0

• Camera: 16 megapixels top camera, support auto-focus/PDAF, 5 megapixels front camera;

• Barcode Type : 1D ; 2D (≧3.33mil)

• Scanning Angle Pitch: ±70°； Skew：±60°； Tilt：360°
• View Angle Horizontal：45°，Vertical：29.5°，Diagonal：50°
• Motion Error Tolerance 8m/s

   • Battery:     3.85V lithium battery, with 4500mAh, detachable(standard)
                      3.85V lithium battery, with 4500mAh, detachable, support NFC(optional)

•NFC (Optional) : Working Frequency 13.56 MHz ; Reading Distance Within 60 mm ; Communication Protocol ISO14443A/14443B/15693

•DropSpecification : Multiple drops to concrete floor from the height of 1.5m

• Ingress Protection : IP67

• Working Temperature : -20°C – 55°C

• UHF RFID :

Communication Protocol :  UHF RFID：ISO18000-6C/EPC Class1 Gen2
                                           LF RFID：Support EMID/FDX-B/HDX protocols

Frequency : UHF RFID：920MHz~925MHz/902MHz~928MHz/865MHz~868MHz
            LF RFID: Meeting the reading of 125KHz/134.2KHz

            OutputPower : 0~25dbm(standard); 5~30dm(optional)

            Antenna :  Circular polarization antenna

            ReadingDistance : UHF RFID：0~25dbm, up to 3m (standard); 5~30dm, up to 5m (optional)
                                           LF RFID：3~5cm
