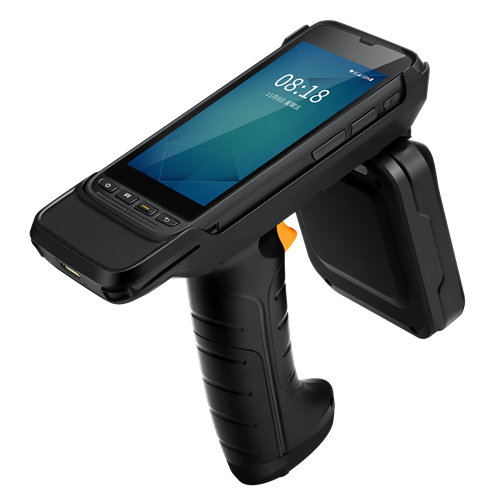

50 UHF (RFID)

• Android 9.0（GMS）Android 11.0(GMS)

• CPU: Octa-core 2.0GHz high-performance processor

• Memory (ROM+RAM) :16GB + 2GB (standard), 64GB+4GB(optional)

• Micro SD card (up to 256 GB)
• SIM : Single SIM card

• Display : 4.7-inch, resolution: 1280*720 pixels

• Communication Transmission: WWAN(2G;3G;4G), Wi-Fi 802.11ac/a/b/g/n/r (2.4G + 5G dual-band Wi-Fi) support Wi-Fi 5G PA amplifier, Bluetooth v5.0

• Camera: 13 megapixels rear camera, support auto-focus/PDAF, 5 megapixels front camera compatible

• Barcode Type : 1D ; 2D (≧3.33mil)

• Scanning Angle Pitch: ±60°； Skew：±45°； Tilt：360°
• View Angle : Horizontal：44.3°，Vertical：28.4°，Diagonal：51°
• Motion Error Tolerance 8m/s

   • Battery:    Main unit : 3.85V lithium battery, with 4000mAh, detachable
               Pistol grip: 3.6V lithium battery, with 5200mAh, undetachable

•NFC (Optional) : Working Frequency 13.56 MHz ; Reading Distance Within 30 mm ; Communication Protocol ISO14443A/14443B/15693

•DropSpecification : Multiple drops to concrete floor from the height of 1.5m

• Ingress Protection : IP65

• Working Temperature : -20°C – 60°C

• UHF RFID :

Communication Protocol : ISO18000-6B/6C/6D

Frequency : 920MHz~925MHz/902MHz~928MHz/865MHz~868MHz

            Output Power : 5~30dBm

            Antenna :  Circular polarization antenna

            Reading Distance : Up to 10m (Up to 700tags/s)
