MS852 DPM ESD
2D Imager DPM Scanner
• Advanced barcode reading technology for decoding Direct Part Marking (DPM)
• Specifically designed to satisfy the stringent requirements of static-safe environments
• Support most 1D / 2D barcode on mobile screens
• Long lifecycle trigger design: Up to 10,000,000 times
• Ultra-rugged design: IP42 and 2.1m drop spec
• Louder beeper and brighter LED indicators for easily recognizing feedbacks
Chi tiết

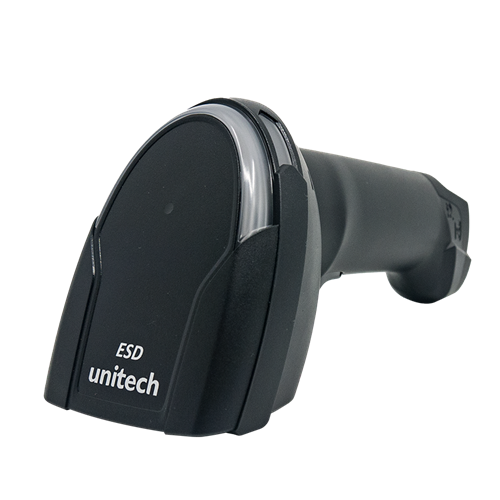

MS852 DPM ESD
2D Imager DPM Scanner
• Sensor : 1280 X 800 Resolution
• Aiming Element : Red cross laser aiming
• Scan Rate :60 FPS
• Skew Angle : ±60°
• Pitch Angle Sensor : ±60°
• Roll Angle : ±360°
• Host Interface supported : USB (HID; CDC)
• Trigger Switch Life : 10 million times
• Symbologies :
1D Barcodes :
Codaba , Code11 , Code39 , Code32 , Code93 , Code128 , Interleaved 2 of 5 , Industrial 2 of 5 , Matrix 2 of 5 ,
GS1‐128 , UPC‐A , UPC‐E , EAN 8 , EAN 13 ,GS1 DataBar（RSS14）, GS1 DataBar Limited , GS1 DataBar Expanded
2D Barcodes :
PDF417 , Micro PDF417 , QR Code , Micro QR , Data Matrix , Aztec Code
• ESD Protection : Functional after 8K Contact and 15K Air
• Mechanical Shock : 2.1M onto concrete (scanner only)
• Operating Temperature :-10°C to 50°C (14°F to 122°F)
• Storage Temperature : -40°C to +70°C (-40°F to +158°F)
• Relative Humidity : 95% non-condensing
• IP Rating : IP42
• Regulatory Approvals : CE, FCC, BSMI, VCCI
