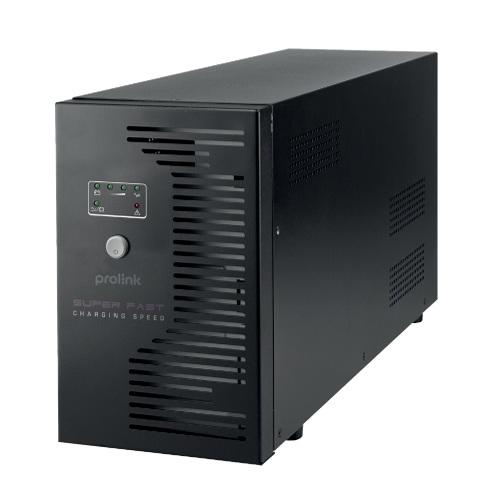

PRO3300SFCU
• Capacity : 3300VA
• Input : Voltage Range 140 ~ 300VAC ±5%;Frequency 50Hz/60Hz (Auto-sensing);Phase Single + GND
• Output : Voltage Range 230VAC +12% - 14% ;Battery Mode 230VAC ±10% ;Frequency 50/60Hz ±1% (Battery mode);Waveform Simulated sine wave (Battery mode),Sine wave (AC mode);Transfer Time 2ms typical .
• Battery : Type 12V/10Ah - 2pc;Backup Time 8 - 30 mins depending on load;Recharge Time 2 - 4 hours recover to 90% capacity.
• Protection/Monitoring :
     Short Circuit Protection: (Line mode & battery mode);Surge Protection ;Alarm Audible & Visual;
     Overload Protection : Line mode 100 - 120% 5 mins change to fault mode , >120% change to fault mode immediately
      Battery mode : 100 - 120% 5 secs shutdown ,>120% shutdown immediately
     Intelligent Battery : Prevent overcharging of battery;Management Protect battery and prolong battery lifev
• Interface :  RJ11 Ports,USB Connector : AC fault, battery low, shutdown UPS
• General : Noise Level <40dB ;Temperature  0˚C - 40˚C;Humidity 0 - 90%;Power Factor Up to 0.7;Built-in AVR TRUE Full AVR (3 steps)
• Software : Support Windows® 2000/ 2003/ XP/ Vista/ 2007/ 8/ 10, Linux, and Mac
• Physical :Dimension (D x W x H)320x130x182 ;Weight 10.6kg.
• Waranty : 2 year
