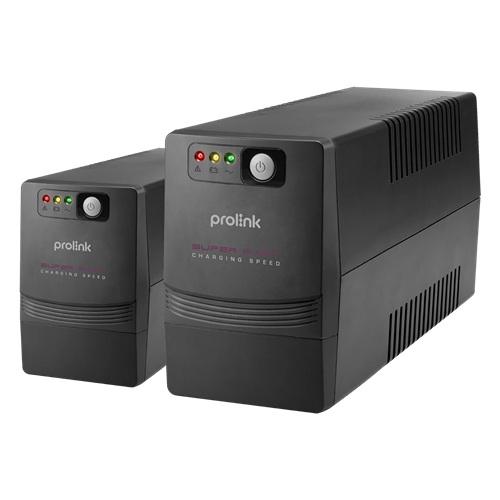

PRO1201SFCU 1200VA
Key Features:
• Super Fast Charging - Ultra-fast charging technology
• AVR - Automatic input voltage adjustment technology
• Wide input voltage range 140-300V
• Short switching time 2-6ms
• Automatic restart after power outage
• Superior battery capacity 8.2-10 Ah
• Uses a powerful microprocessor for high reliability
• Compatible with: Desktop, Laptop, Workstation, Printer, Fax, Modem
Details
PRO1201SFCU
• Capacity : 1200VA
• Input : Voltage Range 140 ~ 300VAC ±5%;Frequency 50Hz/60Hz (Auto-sensing);Phase Single + GND
• Output : Voltage Range 230VAC +12% - 14% ;Battery Mode 230VAC ±10% ;Frequency 50/60Hz ±1% (Battery mode);Waveform Simulated sine wave (Battery mode),Sine wave (AC mode);Transfer Time 2ms typical .
• Battery : Type 12V/8.2Ah - 2pc;Backup Time 8 - 30 mins depending on load;Recharge Time 2 - 4 hours recover to 90% capacity.
• Protection/Monitoring :
Short Circuit Protection: (Line mode & battery mode);Surge Protection ;Alarm Audible & Visual;
Overload Protection : Line mode 100 - 120% 5 mins change to fault mode , >120% change to fault mode immediately
Battery mode : 100 - 120% 5 secs shutdown ,>120% shutdown immediately
Intelligent Battery : Prevent overcharging of battery;Management Protect battery and prolong battery lifev
• Interface : RJ11 Ports,USB Connector : AC fault, battery low, shutdown UPS
• General : Noise Level <40dB ;Temperature 0˚C - 40˚C;Humidity 0 - 90%;Power Factor Up to 0.7;Built-in AVR TRUE Full AVR (3 steps)
• Physical :Dimension (D x W x H)320x130x182 ;Weight 8.2kg.
• Waranty : 2 year
