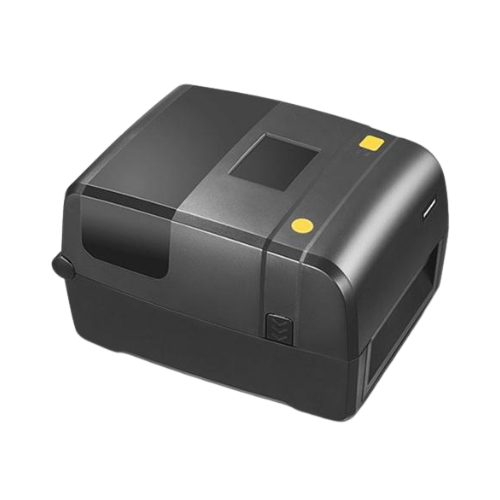

Chainway CP30 RFID
• Printing Method : Thermal transfer / Direct thermal
• Resolution : 203dpi / 300dpi (option)
• Max. Printing Speed: 8ips (203dpi) /6ips (300dpi)
• Max. Printing Width : 108mm (203dpi)/ 106mm (300dpi)

Media
• RFID Tag : UHF RFID, 860-928MHz, EPC C1G2 (ISO18000-6C)
• Types : Continuous Paper, Gap, Black Mark, Punched Hole Label
• Width : 1'' (25.4) - 4.65'' (118mm), include the liner
• Thickness : 0.002'' (60um) - 0.01'' (250um)
• Height : 0.0787'' (20mm) - 9.84'' (250mm)
• Label Roll Diameter : 5'' (127mm) Max
• Core Diameter : 0.5'' (12.7mm), 1'' (25.4mm), 1.5'' (38mm)

Ribbon
• Types : Wax, Wax / Resin, Resin
• Width : 1.18'' (30mm) - 4.33'' (110mm)
• Length : 984' (300m)
• Core Diameter : 1'' (25.4mm)

Physical Characteristics
• Dimensions : 293mm (L) × 237mm (W) × 180mm (H)
• Weight : 2.9kg / 102.29oz.
• Display : 3.5" TFT Color Touch Panel LCD
• Interfaces : Standard: USB, USB host, Ethernet
• Optional: Wi-Fi, Bluetooth
• Power Supply : External AC / DC switching power adapter, AC 100V-240V / DC 24V / 2A / 48W, Peak 8A

Performance
• RAM : 128MB
• Flash : 256MB

User Environment
• Operating Temp : 41℉ (5℃)-104℉ (40℃), humidity 30% to 85% non-condensing
• Storage Temp : -4℉ (-20℃)-122℉ (50℃), humidity 10%-90% non-condensinng

UHF RFID
• Engine    M6E-NANO module based on impinj Indy R500
• CM510-1 module based on impinj E510
• Frequency : 920-925MHz / 902-928MHz / 865-868MHz
• Protocol : EPCglobal C1G2 (ISO18000-6C)
• Supports : Impinj Gen2X

Other Specification (RFID Printer)
• Emulation : ZPL-II, TSPL, DPL, EPL
• Software : Label Design Software : Bartender Ultralite
• Driver: Windows Vista 7 / 8 / 10, Server 2012 / 2016 / 2018
• Resident Fonts    Bitmap fonts: 6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270° rotatable and 10 times expandable in horizontal and vertical directions
• TTF fonts: Monotype CG Triumvirate™. 0°, 90°, 180°, 270° rotatable
• Download Fonts    Bitmap fonts: 90°, 180°, 270° rotatable and 10 times expandable in horizontaland vertical directions
• Asian fonts: 16 x 16, 24 x 24. Traditional Chinese, Simplified Chinese, Japanese, Korean, 90°, 180°, 270°, rotatable and 8 times expandable in horizontal and vertical directions
• TTF fonts: 90°, 180°, 270° rotatable
• Barcodes : 1D: Code 39, Code 93, EAN 8 / 13 (add on 2 & 5), UPC A / E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC / EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5, Logmars, Code 11, Code 49, Cadablock
• 2D: PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro QR code, Aztec code
Code Page : 850, 852, 437, 860, 863, 865, 857, 861, 862, 855, 866, 737, 851, 869, WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257, UTF-8, UTF-16BE, • • UTF-16LE,DBCS 932 (JIS), 936 (GBK), 949 (Koran), 950 (BIG5)
• Graphics : Resident graphic file types are BMP and PCX, other graphic formats are converted by the software download
• Options & Accessory : Peeler Module, Cutter Module, External Label Roll Holder
• Agency Approval    CE EMC (EN 55022 Class B), FCC EMC (Class A), CCC, ROHS
