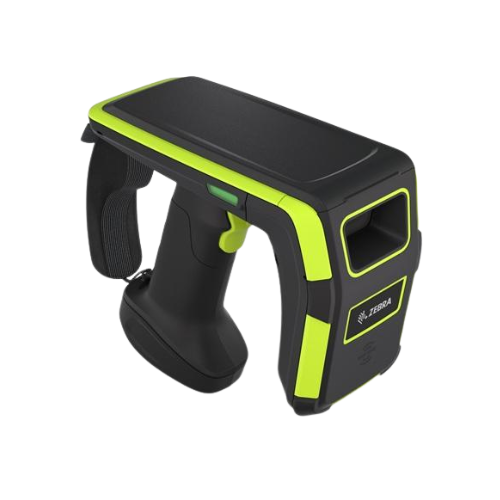

RFD9030

• RFID Performance :
• Standards Supported: EPC Class 1 Gen 2; EPC Gen2 V2
• RFID Engine :Zebra Proprietary Radio Technology
• Fastest Read Rate: 1,300+ tags/sec
• Nominal Read Range: ~22 ft./~6.7 m
• Frequency Range and RF System Output :
    US: 902–928 MHz; 0–30 dBm (EIRP)
    EU: 865–868 MHz; 0–30 dBm (EIRP)916.3, 917.5, and 918.7 MHz; 0–30 dBm (EIRP)
    Japan: 916–921 MHz (w LBT), 0–30 dBm (EIRP)
• SE4750MR Standard Range Imager :
    Sensor Resolution :1280 x 960 pixels
    Field of View:31° horizontal, 23° vertical
    Skew Tolerance ±60°;Pitch Tolerance ±60°:Roll Tolerance 360°
    Focal Distance :14.2 in./36.1 cm from front of engine
    Aiming LED : 655 nm laser . Illumination:2X warm white LEDs
• Wireless LAN :
    Radio : IEEE 802.11 ax/ac/a/b/g/n 2X2, MU-MIMO, IPv4
• Data Rate : 5 GHz PHY data rates up to 1.2 Gbps;2.4 GHz PHY data rates up to 458 Mbps
• Operating Channels :
    Channel 1–14: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14;Channel 36–196: 36, 40,     44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144,     149, 153, 157,161, 165, 172, 183, 184, 185, 187, 188, 189, 192, 196;
    Channel Bandwidth: 20, 40, 80 MHz
• Power : Quick-Release, PowerPrecision+ Li-Ion 7,000mAh battery
• Communication :
    Host Connection : Electronic 8-Pin Connection (eConnex™)Bluetooth 5.3;USB Cable Cup
    Host Computer : Zebra mobile computers and tablets,3rd-party smartphones and     tablets ,Windows-based PCs
• Mobile Computer Adaptors : eConnex, Bluetooth, OtterBox universe Case System
• User Environment:
    Drop Specification:Multiple 6 ft./1.8 m drops to concrete
    Tumble Specification:500 cycles (1,000 drops, 1.6 ft./0.5 m) at room temperature
    Operating Temperature:-4°F to 131°F/-20°C to 55°C
    Storage Temperature : -40°F to 158°F/-40°C to 70°C
    Humidity : 5–85% non-condensing
    Sealing : IP65 (spray) and IP67 (submersion)
