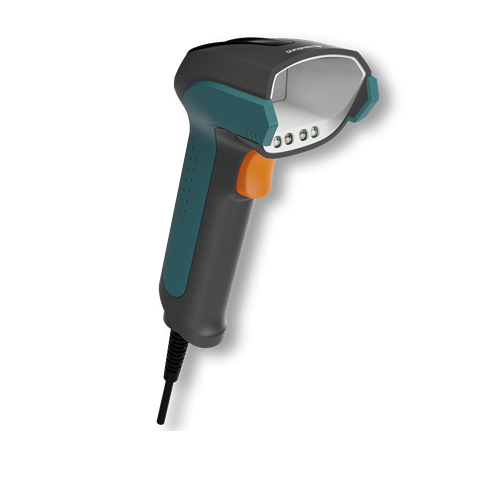

NVH220 Industrial Scanner
• Image Sensor : 1280×800  CMOS
• Aiming : 650nm, crosshair laser
• Illumination : Direct: red & blue LEDs;Diffuse: white LED;
• Symbologies : 1D,2D
• Resolution  : ≥3mil
• Typical Depth of Field : EAN-13(13mil) : 10mm-280mm
            Code 39(5mil) : 30mm-180mm
            Code 39(20mil) : 50mm-440mm
            Data Matrix(10mil) : 15mm-140mm
            QR Code(20mil) : 10mm-250mm
• Motion Tolerance : 2m/s
• Scan Angle : Roll: 360°, Pitch: ±50°, Skew: ±50°
• Field of View : Horizontal 42°, Vertical 28°
• Min Symbol Contrast : 20%
• Interface  : RS-232, USB
• Operating Voltage : 5VDC±5%
• Dimensions (L×W×H) : 68 (W) × 86 (D) × 180(H) mm
• Weight : 160g
• Notification : Beep, LED, Vibration
• Operating Temperature : -20°C to 50°C (-4°F to 122°F)
• Storage Temperature : -40°C to 70°C (-40°F to 158°F)
• Humidity : 5%~95% (non-condensing)
• ESD : ±16 KV (air discharge); ±8 KV (direct discharge)
• Drop : 1.8m
• Sealing : IP64
• Certificates & Protection : FCC,CE,ROHS,IEC62471,BIS,KC
